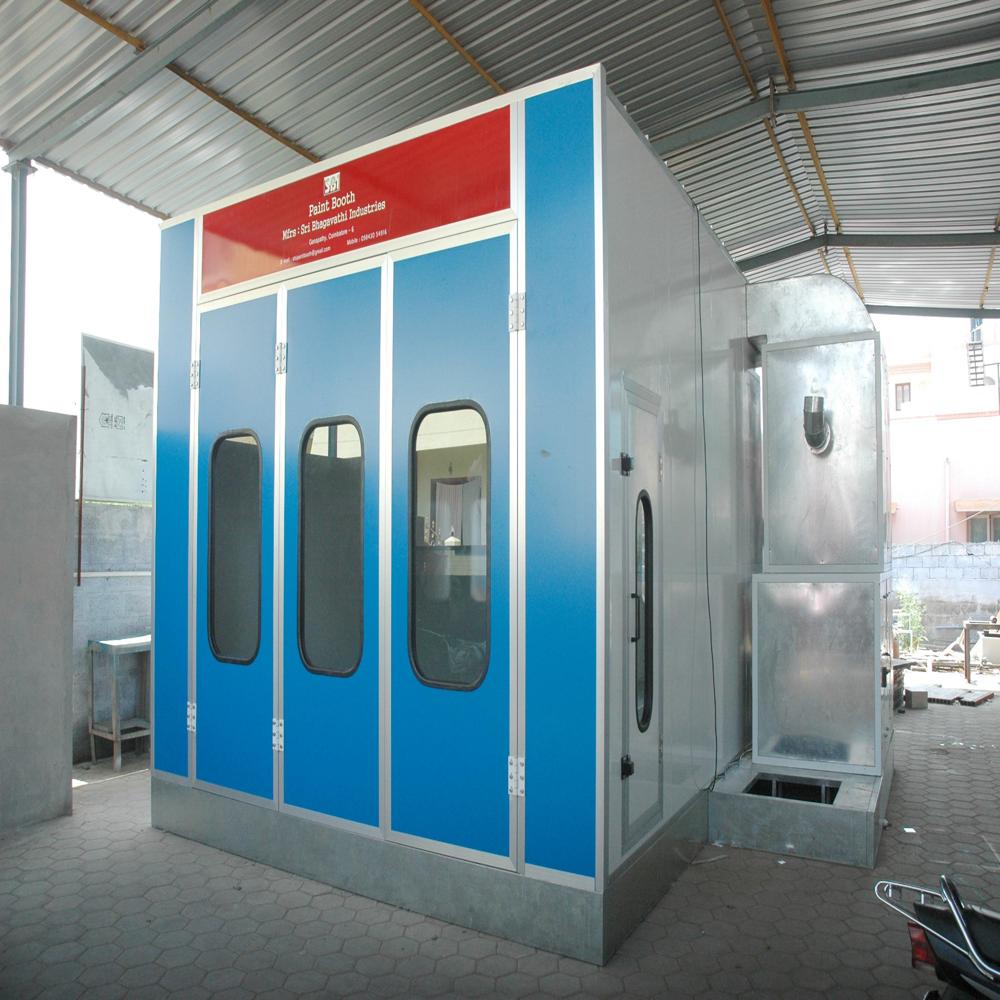

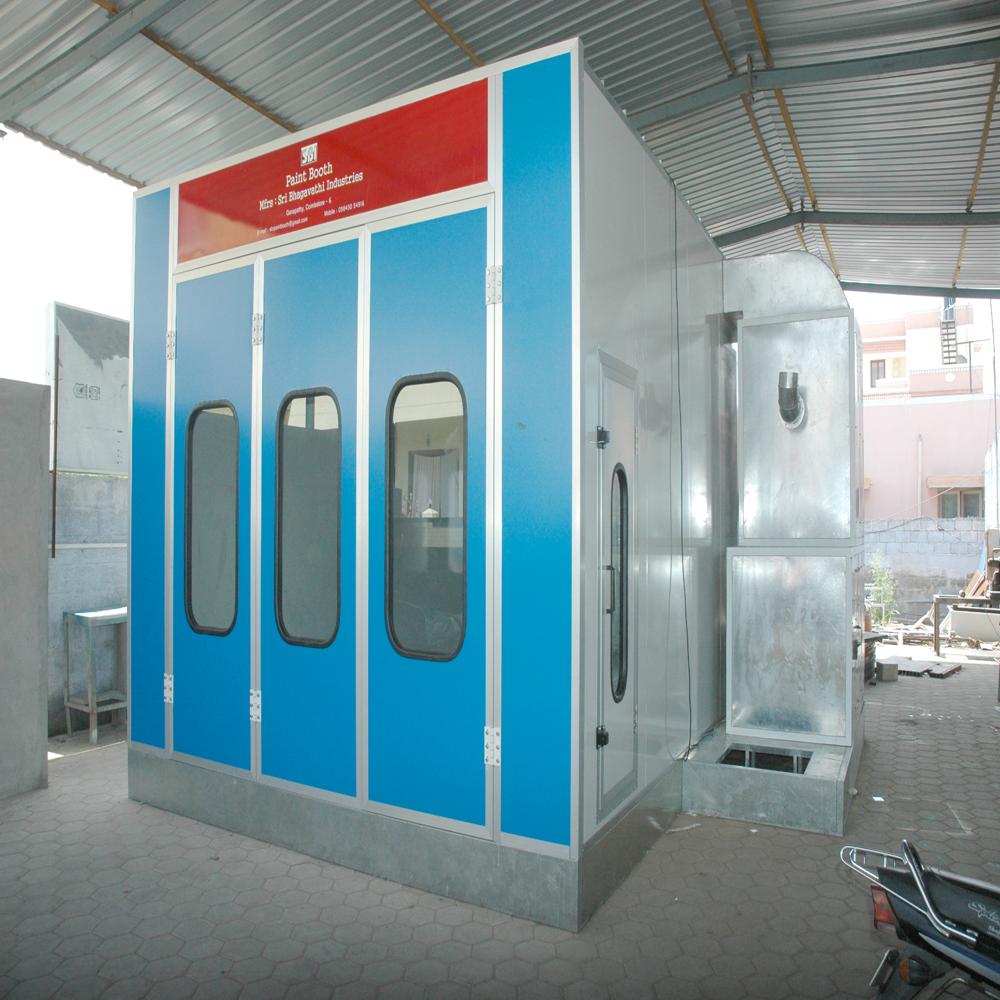

Commercial Car Paint Booth

Product Description

SPECIFICATION:

  Booth Overall Dimension:      Length - 7200mm, Breadth - 4000mm & Height - 3100mm.

  Booth Working Dimension:    Length - 5750mm, Breadth - 3900mm & Height - 2400mm.

  Door Size:                               3000 mm width & 2500 mm Height

  Inlet Blower:                           1 No 5 HP/ 440 RPM / 3 Phase / 440 V.

  Motor Make:                           Crompton Greaves

BODY CONSTRUCTION:

  Cabin System:                         Wallboard: Puff Panel 50mm Thick.

  Basement:                               Plain Civil basement.

  Inlet Blower:                           Capacity 15000 m3/h; Power - 5 HP - 1 No.

  Filter Area:                              Height -1 Meter x Width-3.9 Meters

  Air Purification System:         Dual Filtering Structure, The Primary Filter can Capture                                                       Granules Larger than 10 m. Ceiling Filter Capture                                                              Granules Bigger than 5 m. The floor filter is fiberglass                                                        filter. The whole Purification System has Capacity of Large                                                 Volume of Dust. It's Filtering Rate Reaches 98%.                                                                 TSP1.4mg/m3.

  Lighting Systems:                   Ceiling Light: 24 pcs 36w Philips Lamp: 800Lux

Panel Box:                               Spray Switch, Light Switch, Emergency Stop,
