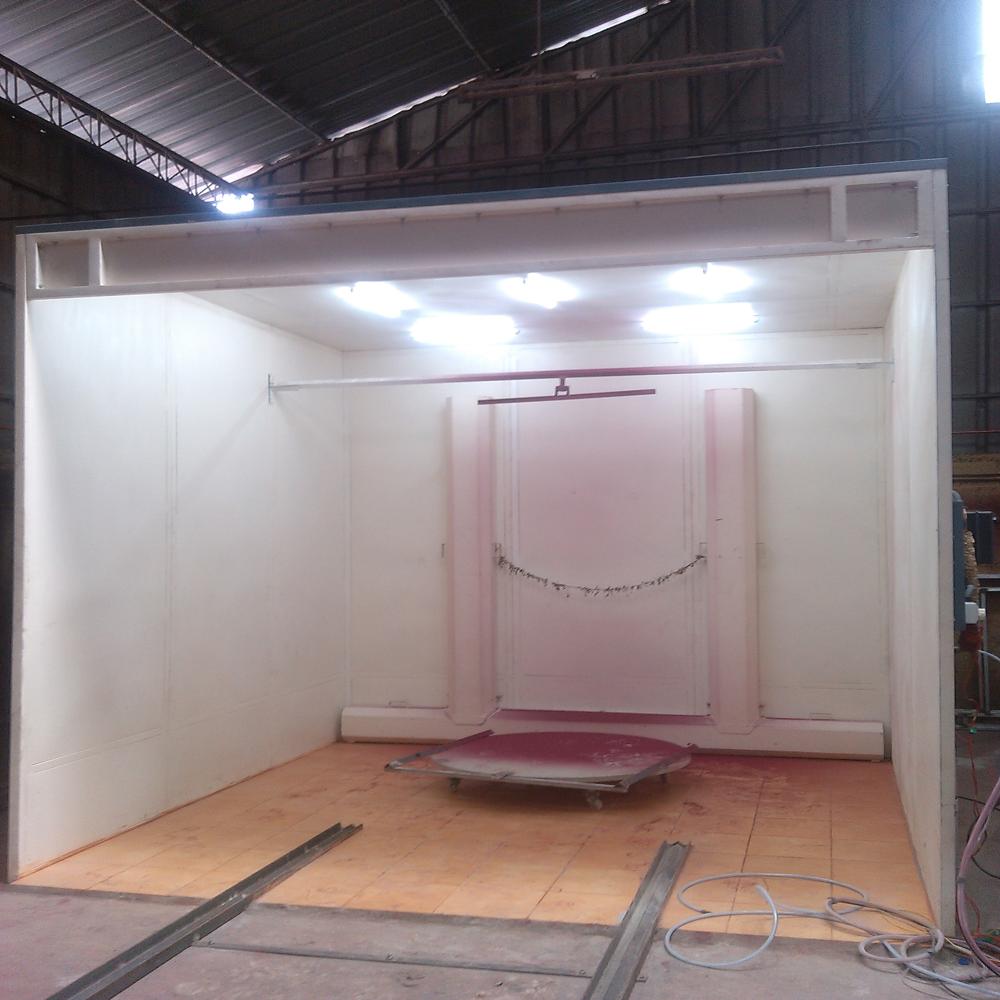

Drying Ovens

Product Description

TECHNICAL DETAILS

Type of Oven                          :  ELECTRICAL TYPE-50 mm Puff Panel

Heating Media                                    :  Electrical. (Air Fiences U Type Heater)

                                                   2 KW/440 V/ 3 Phase.

Make                                       :  Omega.

Position inside oven                :  Easy to install and maintenance by removing the duct

                                                   front sheet.

Transfer of Energy                  :  Connected with Air Circulation

Type of Heating                      :  Through Electrical Coil.

Entry & Exit                           :  One side of the oven.

Blower for Air Circulation      :  2 Nos.

Motors                                    :  Crompton Greaves.

Blower Impeller                      :  In Direct drive(SBI Make- 3 Thk MS Sheet).

Heat Zone                               :  12 KW (Apprx) - 12 Coils (2 KW/ side)

Control Panel                          :  A suitable control panel with separate switch on/off for

Mains  Blower with all the safety features shall be provided.

                                                   Thermo couple 2 Nos Apprx (Probe Length 300mm)

Control Panel                          :  Heater Automatically ON/OFF when it reaches the
